Power Amplifier A8004

Power Amplifier A8004

a8004

The classic Chevin A-Series amplifier is built in a steel and aluminium housing incorporating lateral Mosfets and the legendary Chevin Power Supply, this combination produces the traditional Chevin sound.

Technical Specification

RMS Power Output
into 8Ω (per channel) 2000 W
into 4Ω (per channel) 4000 W
Number of Channels 2
Power Bandwidth +0db, -3db 2 Hz – 80 kHz
Slew Rate in Excess of 75 V / µS
Total Harmonic Distortion
typical @ 1db below clip 0.04 %
Signal to Noise Ratio
Typical Reference Full Output, Unweighted -125 dB
Worst Case 10 Hz – 30 kHz -95 dB
Crosstalk Typical -115 dB
Damping Factor 400
Input Impedance Electronically Balanced 10 kΩ
Input Sensitivity
Reference Full Output into 4 Ω
1V RMS
Protection
Clipping, Load Below 2.4 Ω soft, dynamic linear
Shorted Output, DC or RF at Output immediate
Power Consumption
1/3 Power Typical Program 2.2 kVA
50/60 Hz AC in Volts 220 V
Dimensions / Weight
height x width x depth (mm) / rack units 132 x 483 x 381 / 3U
Net Weight 20kg

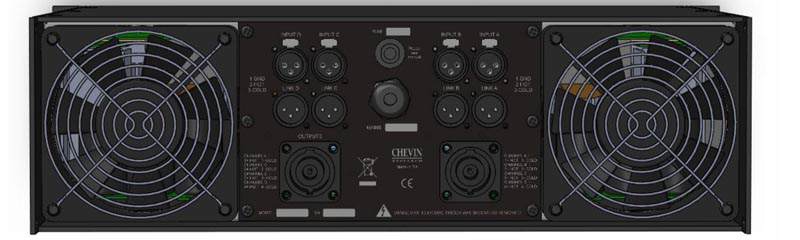

a8004 back

©2010 Chevin Research. Product design and specifications may change without prior notice
