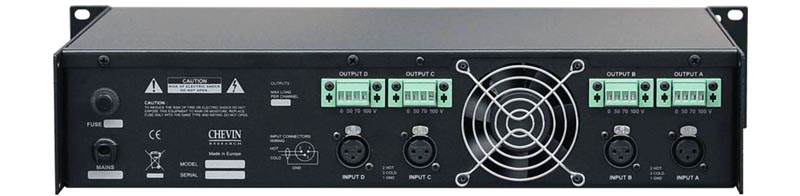

Rack Mount Amplifier S4240L

S4240L model

The Chevin S4120L is designed to meet every standard for distributed sound systems with isolated 50V, 70V and 100V outputs. Its controled cooling provides quiet operation. Powder coated steel face plates and heavy-duty steel chassis reflect the manufacturing quality within. It carries the CE approval for world-wide use.

Technical Specification

Power output (1kHz at 1.0%THD) 4 x 120 W
Input sensitivity 1 V
Input impedance 20 kΩ Balanced
THD 1 kHz / - 3dB < 0.05 %
Frequency response - 3 dB 20Hz - 20kHz
S/N Ratio > 100 dB
“A” weighted > 104 dB
Output [V] 50 / 70 / 100
Protection signal limiter, short circuit, DC, overload, load-mismatch
Cooling variable speed fan
Inputs balanced XLR + female for every channel
Indicators ON green LED
SIGNAL green LED for every channel
Controls power switch On / Off
volume - level control for all channels
Power AC ~ 230V / 120V 50 / 60 Hz
Dimensions 483 x 88 x 360 mm (2U)
Weight 15,2 kg


©2008 Chevin Research. Product design and specifications may change without prior notice
